03h — Does the training-sample design drive the results?

import os
from pathlib import Path

import matplotlib.pyplot as plt
import numpy as np
import pandas as pd
from healpix_geo.nested import lonlat_to_healpix, vertices
from matplotlib.collections import PolyCollection
from scipy import stats
from sklearn.ensemble import RandomForestClassifier
from sklearn.inspection import permutation_importance
from sklearn.isotonic import IsotonicRegression
from sklearn.metrics import balanced_accuracy_score, roc_auc_score
from sklearn.neighbors import BallTree

plt.style.use("seaborn-v0_8-whitegrid")

SMOKE = os.environ.get("SMOKE", "0") == "1"
CLEAN = Path("../data/clean_smoke" if SMOKE else "../data/clean")
RESULTS = Path("../results/smoke" if SMOKE else "../results")
FIGURES = Path("../figures/smoke" if SMOKE else "../figures")
for d in (RESULTS, FIGURES):
    d.mkdir(parents=True, exist_ok=True)
N_TREES = 100 if SMOKE else 500
SEED = 20261003
MHA = 1e10
GRID_W = 100
R_EARTH_KM = 6371.0088
ANNULUS_KM = 3.0  # Cloud's annulus: non-regrowth within 3 km of regrowth
PAIRED_SHARE = 0.8  # share of non-regrowth training points from the annulus
TOP_SHARE = 0.05  # priority pixels: top 5 % of the prediction domain
HP_DEPTH = 8
FINAL_VARS = ["forest_density_2000", "dist_forest_2000", "ocdens", "phihox", "pc1", "pc2", "pc3", "pc4", "lc_2000", "biome"]
CLIMATE_VARS = ["pc1", "pc2", "pc3", "pc4", "biome"]
PRED_MAP = {"forest_density_2000": "forest_density_2018", "dist_forest_2000": "dist_forest_2018", "lc_2000": "lc_2015"}
VARS_2018 = [PRED_MAP.get(v, v) for v in FINAL_VARS]
VARS_FW = [v.replace("2000", "2012") for v in FINAL_VARS]
COL_SHARE = 188_921 / 4_780_000
N_TRAIN = 2_000 if SMOKE else int(round(1_000_000 * COL_SHARE))
N_PERM = 4_000 if SMOKE else 20_000
POOL_SHARE = 6 / 10.87  # MapBiomas grid split, as in 03f

samples = pd.read_parquet(CLEAN / "samples.parquet")
grid = pd.read_parquet(CLEAN / "pred_grid.parquet", columns=["lon", "lat", "grow", "gcol", "area_ell", "label",
                                                             "is_pred_domain", *dict.fromkeys(FINAL_VARS + VARS_2018)])
mbg = pd.read_parquet(CLEAN / "mapbiomas_grid.parquet", columns=["grow", "gcol", "forest_density_2012",
                                                                  "dist_forest_2012", "lc_2012", "mb_label_fw1",
                                                                  "mb_label_fw2"])
assert (grid.grow.to_numpy() == mbg.grow.to_numpy()).all() and (grid.gcol.to_numpy() == mbg.gcol.to_numpy()).all()
grid = pd.concat([grid, mbg.drop(columns=["grow", "gcol"])], axis=1)
del mbg
grid["a"] = grid.area_ell * GRID_W
sums = pd.read_csv(CLEAN / "tile_sums.csv").drop(columns="tile").sum()
PI = float(sums["class1_area_ell"] / (sums["class1_area_ell"] + sums["class0_area_ell"]))
pool = samples[samples.set == "train_pool"]
val = samples[samples.set == "validation"].reset_index(drop=True)
print(f"pool {len(pool):,}; validation {len(val):,}; grid {len(grid):,}; prevalence pi = {PI:.5f}")


def make_rf(seed: int = SEED) -> RandomForestClassifier:
    """Identical to 03_analysis.make_rf (R randomForest classification defaults)."""
    return RandomForestClassifier(n_estimators=N_TREES, max_features=3, min_samples_leaf=1, bootstrap=True,
                                  oob_score=True, n_jobs=-1, random_state=seed)


def prior_shift(p: np.ndarray, pi: float, train_prev: float = 0.5) -> np.ndarray:
    num = p * pi / train_prev
    return num / (num + (1 - p) * (1 - pi) / (1 - train_prev))


def scores(y: np.ndarray, p: np.ndarray) -> dict[str, float]:
    return {"accuracy": float(((p > 0.5) == y).mean()), "balanced_accuracy": float(balanced_accuracy_score(y, p > 0.5)),
            "sensitivity": float((p[y == 1] > 0.5).mean()), "specificity": float((p[y == 0] <= 0.5).mean()),
            "auc": float(roc_auc_score(y, p)), "n": int(len(y)), "n_regrowth": int((y == 1).sum())}


def km_to_nearest(ref: pd.DataFrame, pts: pd.DataFrame) -> np.ndarray:
    tree = BallTree(np.radians(ref[["lat", "lon"]].to_numpy()), metric="haversine")
    d, _ = tree.query(np.radians(pts[["lat", "lon"]].to_numpy()), k=1)
    return d[:, 0] * R_EARTH_KM


def draw(df: pd.DataFrame, label: str, n1: int, n0: int, near: np.ndarray | None = None,
         seed: int = SEED) -> pd.DataFrame:
    """n1 regrowth + n0 non-regrowth; with `near`, PAIRED_SHARE of non-regrowth come from the annulus."""
    c1 = df[df[label] == 1]
    c1 = c1.sample(n=min(n1, len(c1)), random_state=seed)
    c0 = df[df[label] == 0]
    n0 = min(n0, len(c0))  # binds only in smoke mode
    if near is None:
        return pd.concat([c1, c0.sample(n=n0, random_state=seed)])
    annulus = c0[near[(df[label] == 0).to_numpy()]]
    n_near = min(int(round(PAIRED_SHARE * n0)), len(annulus))
    a = annulus.sample(n=n_near, random_state=seed)
    b = c0.drop(index=a.index).sample(n=n0 - n_near, random_state=seed)
    return pd.concat([c1, a, b])


def local_set(df: pd.DataFrame, label: str, near: np.ndarray, seed: int = SEED) -> pd.DataFrame:
    """All regrowth + an equal number of non-regrowth points from the annulus."""
    c1 = df[df[label] == 1]
    c0 = df[(df[label] == 0).to_numpy() & near]
    return pd.concat([c1, c0.sample(n=min(len(c1), len(c0)), random_state=seed)])


rows: list[dict] = []


def add(part: str, design: str, metric: str, value: float, n: int | None = None, note: str = "") -> None:
    rows.append(dict(part=part, design=design, metric=metric, value=value, n=n, note=note))


g = grid[grid.is_pred_domain].dropna(subset=VARS_2018).copy()
Xg = g[VARS_2018].to_numpy()
print(f"prediction-domain grid points with complete 2018 predictors: {len(g):,}")


def grid_area(p: np.ndarray) -> float:
    return float((p * g.a.to_numpy()).sum() / MHA)

for r in [0.5, 0.2, 0.05, PI]:
    n1 = int(round(r * N_TRAIN))
    tr = (pd.concat([grp.sample(n=min(N_TRAIN // 2, len(grp)), random_state=SEED) for _, grp in pool.groupby("label")]) if r == 0.5
          else draw(pool, "label", n1, N_TRAIN - n1))
    m = make_rf().fit(tr[FINAL_VARS].to_numpy(), tr.label.to_numpy())
    pv = m.predict_proba(val[FINAL_VARS].to_numpy())[:, 1]
    pg = m.predict_proba(Xg)[:, 1]
    design = f"regrowth_share_{r:.4f}"
    for k, v in scores(val.label.to_numpy(), pv).items():
        add("A_prevalence", design, k, v, len(val), "step-2 validation set (balanced, random)")
    add("A_prevalence", design, "training_regrowth_share", r, len(tr))
    add("A_prevalence", design, "expected_area_uncalibrated_mha", grid_area(pg), len(g), "sum p x area, as in the paper")
    add("A_prevalence", design, "expected_area_prior_shift_mha", grid_area(prior_shift(pg, PI, r)), len(g),
        "Saerens prior shift from the training share to pi")
    add("A_prevalence", design, "area_p_gt05_mha", grid_area((pg > 0.5).astype(float)), len(g))
    print(design, {k: round(v, 4) for k, v in scores(val.label.to_numpy(), pv).items()},
          f"area uncal {grid_area(pg):.3f}, prior-shift {grid_area(prior_shift(pg, PI, r)):.3f} Mha")
prev = pd.DataFrame([x for x in rows if x["part"] == "A_prevalence"])

ref_fagan = grid[grid.label == 1]
pool = pool.assign(km=km_to_nearest(ref_fagan, pool))
val = val.assign(km=km_to_nearest(ref_fagan, val))
near_pool, near_val = (pool.km <= ANNULUS_KM).to_numpy(), (val.km <= ANNULUS_KM).to_numpy()
for nm, df, near in [("pool", pool, near_pool), ("validation", val, near_val)]:
    c0 = (df.label == 0).to_numpy()
    add("B_paired", "data", f"{nm}_nonregrowth_share_within_{ANNULUS_KM:g}km", float(near[c0].mean()), int(c0.sum()))
    add("B_paired", "data", f"{nm}_nonregrowth_median_km_to_regrowth", float(np.median(df.km[c0])), int(c0.sum()))
    add("B_paired", "data", f"{nm}_regrowth_median_km_to_regrowth_grid", float(np.median(df.km[~c0])), int((~c0).sum()),
        "regrowth sample points to the nearest regrowth grid point (lattice resolution check)")
print(pd.DataFrame(rows[-6:])[["metric", "value", "n"]].to_string(index=False))

train_b = {"global": pd.concat([grp.sample(n=min(N_TRAIN // 2, len(grp)), random_state=SEED) for _, grp in pool.groupby("label")]),
           "paired": draw(pool, "label", N_TRAIN // 2, N_TRAIN - N_TRAIN // 2, near_pool)}
loc_val = local_set(val, "label", near_val)
models, p_val, p_grid = {}, {}, {}
for design, tr in train_b.items():
    m = make_rf().fit(tr[FINAL_VARS].to_numpy(), tr.label.to_numpy())
    models[design] = m
    p_val[design] = m.predict_proba(val[FINAL_VARS].to_numpy())[:, 1]
    p_loc = m.predict_proba(loc_val[FINAL_VARS].to_numpy())[:, 1]
    for k, v in scores(val.label.to_numpy(), p_val[design]).items():
        add("B_paired", design, f"random_validation_{k}", v, len(val), "step-2 validation set")
    for k, v in scores(loc_val.label.to_numpy(), p_loc).items():
        add("B_paired", design, f"local_validation_{k}", v, len(loc_val),
            f"validation regrowth + equal non-regrowth within {ANNULUS_KM:g} km of regrowth")
    add("B_paired", design, "training_nonregrowth_median_km", float(np.median(tr.km[tr.label == 0])),
        int((tr.label == 0).sum()))
    p_grid[design] = m.predict_proba(Xg)[:, 1]
    print(design, "random", {k: round(v, 4) for k, v in scores(val.label.to_numpy(), p_val[design]).items()})
    print(design, "local ", {k: round(v, 4) for k, v in scores(loc_val.label.to_numpy(), p_loc).items()})

sub = pd.concat([grp.sample(n=min(N_PERM // 2, len(grp)), random_state=SEED) for _, grp in val.groupby("label")])
imp_rows = []
for design, m in models.items():
    pi_ = permutation_importance(m, sub[FINAL_VARS].to_numpy(), sub.label.to_numpy(), scoring="roc_auc", n_repeats=3,
                                 random_state=SEED, n_jobs=-1)
    s = pd.Series(np.clip(pi_.importances_mean, 0, None), index=FINAL_VARS)
    for v in FINAL_VARS:
        imp_rows.append(dict(design=design, variable=v, group="climate" if v in CLIMATE_VARS else "local",
                             auc_drop=float(pi_.importances_mean[FINAL_VARS.index(v)]), share=float(s[v] / s.sum())))
    add("B_paired", design, "importance_share_climate", float(s[CLIMATE_VARS].sum() / s.sum()), len(sub),
        "permutation importance (AUC drop, negatives clipped to 0)")
imp = pd.DataFrame(imp_rows)
imp.to_csv(RESULTS / "step3_sampling_importance.csv", index=False)
print(imp.pivot_table(index="variable", columns="design", values="share").round(3).to_string())

y_val = val.label.to_numpy()
w_val = np.where(y_val == 1, PI, 1 - PI) / np.where(y_val == 1, (y_val == 1).mean(), (y_val == 0).mean())
p_cal = {}
for design in models:
    iso = IsotonicRegression(out_of_bounds="clip", y_min=0, y_max=1).fit(p_val[design], y_val, sample_weight=w_val)
    p_cal[design] = iso.predict(p_grid[design])
    add("B_paired", design, "expected_area_uncalibrated_mha", grid_area(p_grid[design]), len(g))
    add("B_paired", design, "expected_area_prior_shift_mha", grid_area(prior_shift(p_grid[design], PI)), len(g),
        "Saerens prior shift; mis-specified for the paired design")
    add("B_paired", design, "expected_area_isotonic_mha", grid_area(p_cal[design]), len(g),
        "isotonic calibration on the random validation set, weighted to pi")
    add("B_paired", design, "area_p_gt05_uncalibrated_mha", grid_area((p_grid[design] > 0.5).astype(float)), len(g))

n_top = int(round(TOP_SHARE * len(g)))
top = {d: set(np.argsort(-p_grid[d], kind="stable")[:n_top]) for d in models}
add("B_paired", "global_vs_paired", "top5pct_overlap", len(top["global"] & top["paired"]) / n_top, n_top,
    "share of the global design's top-5 % grid points also in the paired design's top 5 %")
add("B_paired", "global_vs_paired", "spearman_p", float(stats.spearmanr(p_grid["global"], p_grid["paired"])[0]), len(g))
for design in models:
    idx = np.fromiter(top[design], dtype=int)
    for b, share in g.biome.iloc[idx].value_counts(normalize=True).items():
        add("B_paired", design, f"top5pct_share_biome_{int(b)}", float(share), n_top)
print(pd.DataFrame([x for x in rows if x["part"] == "B_paired" and "area" in x["metric"] or "top5" in x["metric"]
                    or "spearman" in x["metric"]])[["design", "metric", "value"]].to_string(index=False))

L1, L2 = "mb_label_fw1", "mb_label_fw2"
rng = np.random.default_rng(SEED)
grid["mb_set"] = np.where(rng.random(len(grid)) < POOL_SHARE, "train_pool", "validation")
l1 = grid[grid[L1] >= 0].dropna(subset=FINAL_VARS)
PI1 = float(grid.a[grid[L1] == 1].sum() / grid.a[grid[L1] >= 0].sum())
l1 = l1.assign(km=km_to_nearest(grid[grid[L1] == 1], l1))
tp1, vp1 = l1[l1.mb_set == "train_pool"], l1[l1.mb_set == "validation"]
near1 = (tp1.km <= ANNULUS_KM).to_numpy()
# a regrowth grid point is its own nearest regrowth point: distances of non-regrowth points only are meaningful
add("C_forward", "data", f"pool_nonregrowth_share_within_{ANNULUS_KM:g}km", float(near1[(tp1[L1] == 0).to_numpy()].mean()),
    int((tp1[L1] == 0).sum()))
train_c = {"global": pd.concat([grp.sample(n=min(N_TRAIN // 2, len(grp)), random_state=SEED)
                                for _, grp in tp1.groupby(L1)]),
           "paired": draw(tp1, L1, N_TRAIN // 2, N_TRAIN - N_TRAIN // 2, near1)}
l2 = grid[grid[L2] >= 0].dropna(subset=VARS_FW)
y2, w2 = l2[L2].to_numpy(), l2.a.to_numpy()
n1v = int((vp1[L1] == 1).sum())
v1 = pd.concat([vp1[vp1[L1] == 1], vp1[vp1[L1] == 0].sample(n=min(n1v, int((vp1[L1] == 0).sum())), random_state=SEED)])
y1v = v1[L1].to_numpy()
w1v = np.where(y1v == 1, PI1, 1 - PI1) / np.where(y1v == 1, (y1v == 1).mean(), (y1v == 0).mean())
p_fw = {}
for design, tr in train_c.items():
    m = make_rf().fit(tr[FINAL_VARS].to_numpy(), tr[L1].to_numpy())
    p2 = m.predict_proba(l2[VARS_FW].to_numpy())[:, 1]
    p_fw[design] = p2
    for k, v in scores(y2, p2).items():
        add("C_forward", design, f"forward_{k}", v, len(y2), "all MapBiomas-labelled 2012-2024 grid points, 2012 inputs")
    order = np.argsort(-p2, kind="stable")
    for k in (0.01, 0.05, 0.10):
        add("C_forward", design, f"forward_precision_top{int(k * 100)}pct", float(y2[order[:int(k * len(y2))]].mean()),
            int(k * len(y2)), "share of the top-ranked points that regrew in 2012-2024")
    iso = IsotonicRegression(out_of_bounds="clip", y_min=0, y_max=1).fit(
        m.predict_proba(v1[FINAL_VARS].to_numpy())[:, 1], y1v, sample_weight=w1v)
    for nm, s in {"uncalibrated": p2, "prior_shift_pi1": prior_shift(p2, PI1), "isotonic_period1": iso.predict(p2)}.items():
        add("C_forward", design, f"predicted_regrowth_area_{nm}_mha", float((s * w2).sum() / MHA), len(y2))
    print(design, {k: round(v, 4) for k, v in scores(y2, p2).items()})
add("C_forward", "observed", "observed_regrowth_area_mha", float((y2 * w2).sum() / MHA), len(y2))
add("C_forward", "observed", "prevalence_2012_2024", float((y2 * w2).sum() / w2.sum()), len(y2),
    "precision of a random ranking")

res = pd.DataFrame(rows)
res.to_csv(RESULTS / "step3_sampling_design.csv", index=False)
print(res[res.part != "A_prevalence"].to_string(index=False, float_format=lambda v: f"{v:.4f}"))

def val_of(part: str, design: str, metric: str) -> float:
    return float(res.loc[(res.part == part) & (res.design == design) & (res.metric == metric), "value"].iloc[0])


def cell_polys(ids: np.ndarray) -> list[np.ndarray]:
    lo, la = vertices(ids.astype("uint64"), HP_DEPTH, ellipsoid="WGS84")
    lo = (np.asarray(lo) + 180) % 360 - 180
    return [np.column_stack([a, b]) for a, b in zip(lo, np.asarray(la))]

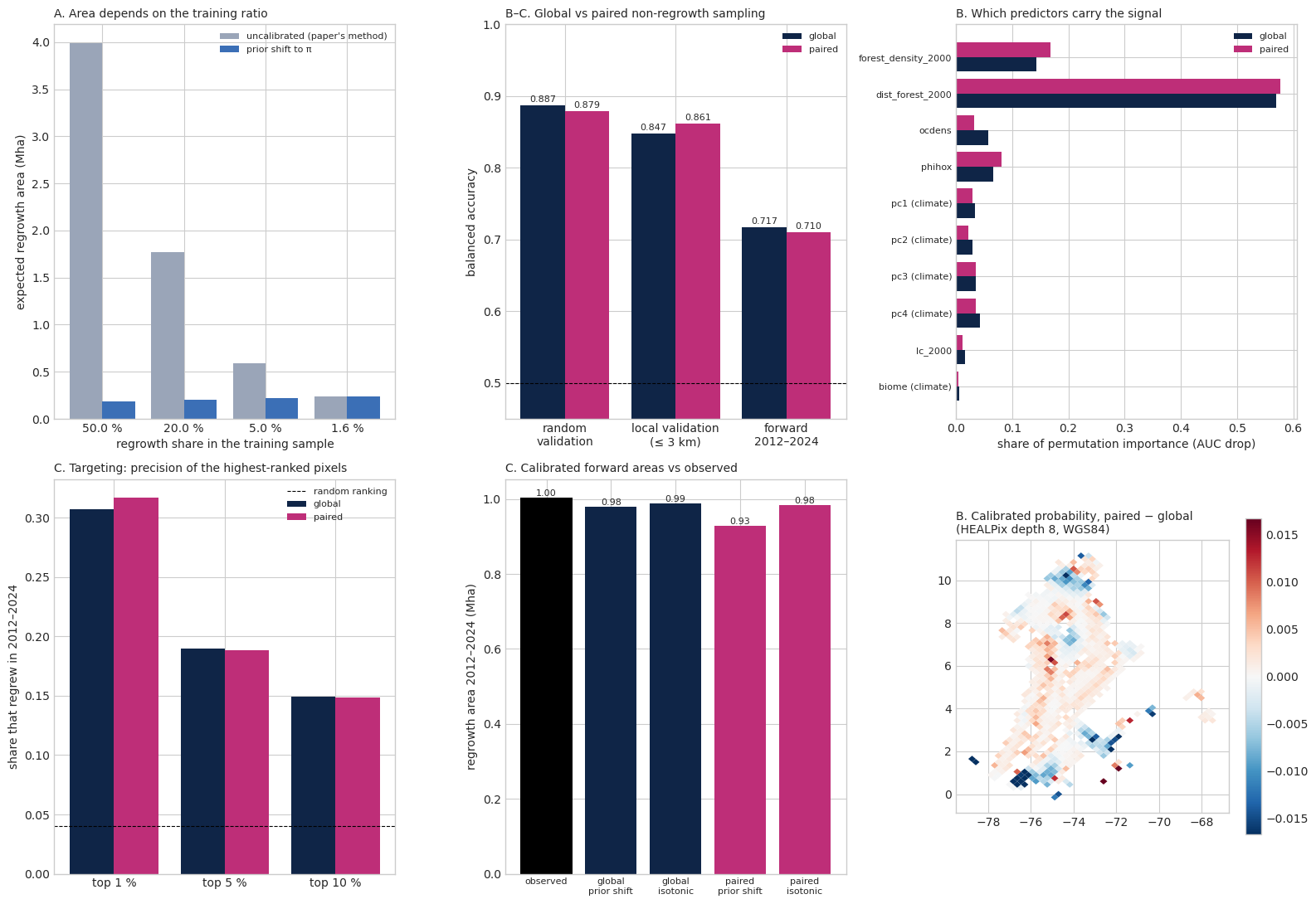

fig = plt.figure(figsize=(16, 11))
gsp = fig.add_gridspec(2, 3)
C_GLOBAL, C_PAIRED, C_UNCAL, C_CAL = "#0f2547", "#be2e78", "#9aa5b8", "#3b6fb6"

ax = fig.add_subplot(gsp[0, 0])
designs = [d for d in prev.design.unique()]
labels = [f"{float(d.split('_')[-1]) * 100:.1f} %" for d in designs]
x = np.arange(len(designs))
ax.bar(x - 0.2, [val_of("A_prevalence", d, "expected_area_uncalibrated_mha") for d in designs], 0.4, color=C_UNCAL,
       label="uncalibrated (paper's method)")
ax.bar(x + 0.2, [val_of("A_prevalence", d, "expected_area_prior_shift_mha") for d in designs], 0.4, color=C_CAL,
       label="prior shift to π")
ax.set_xticks(x, labels)
ax.set_xlabel("regrowth share in the training sample")
ax.set_ylabel("expected regrowth area (Mha)")
ax.set_title("A. Area depends on the training ratio", fontsize=10, loc="left")
ax.legend(fontsize=8)

ax = fig.add_subplot(gsp[0, 1])
groups = [("random\nvalidation", "B_paired", "random_validation_balanced_accuracy"),
          ("local validation\n(≤ 3 km)", "B_paired", "local_validation_balanced_accuracy"),
          ("forward\n2012–2024", "C_forward", "forward_balanced_accuracy")]
x = np.arange(len(groups))
for off, design, col in [(-0.2, "global", C_GLOBAL), (0.2, "paired", C_PAIRED)]:
    vals = [val_of(p, design, mt) for _, p, mt in groups]
    ax.bar(x + off, vals, 0.4, color=col, label=design)
    for xx, v in zip(x + off, vals):
        ax.text(xx, v + 0.005, f"{v:.3f}", ha="center", fontsize=8)
ax.axhline(0.5, color="k", lw=0.8, ls="--")
ax.set_xticks(x, [g_[0] for g_ in groups])
ax.set_ylim(0.45, 1)
ax.set_ylabel("balanced accuracy")
ax.set_title("B–C. Global vs paired non-regrowth sampling", fontsize=10, loc="left")
ax.legend(fontsize=8)

ax = fig.add_subplot(gsp[0, 2])
tab = imp.pivot_table(index="variable", columns="design", values="share").loc[FINAL_VARS]
y = np.arange(len(tab))
ax.barh(y + 0.2, tab["global"], 0.4, color=C_GLOBAL, label="global")
ax.barh(y - 0.2, tab["paired"], 0.4, color=C_PAIRED, label="paired")
ax.set_yticks(y, [f"{v} (climate)" if v in CLIMATE_VARS else v for v in tab.index], fontsize=8)
ax.invert_yaxis()
ax.set_xlabel("share of permutation importance (AUC drop)")
ax.set_title("B. Which predictors carry the signal", fontsize=10, loc="left")
ax.legend(fontsize=8)

ax = fig.add_subplot(gsp[1, 0])
ks = [1, 5, 10]
x = np.arange(len(ks))
for off, design, col in [(-0.2, "global", C_GLOBAL), (0.2, "paired", C_PAIRED)]:
    ax.bar(x + off, [val_of("C_forward", design, f"forward_precision_top{k}pct") for k in ks], 0.4, color=col,
           label=design)
ax.axhline(val_of("C_forward", "observed", "prevalence_2012_2024"), color="k", lw=0.8, ls="--",
           label="random ranking")
ax.set_xticks(x, [f"top {k} %" for k in ks])
ax.set_ylabel("share that regrew in 2012–2024")
ax.set_title("C. Targeting: precision of the highest-ranked pixels", fontsize=10, loc="left")
ax.legend(fontsize=8)

ax = fig.add_subplot(gsp[1, 1])
items = [("observed", val_of("C_forward", "observed", "observed_regrowth_area_mha"), "k")]
for design, col in [("global", C_GLOBAL), ("paired", C_PAIRED)]:
    items += [(f"{design}\nprior shift", val_of("C_forward", design, "predicted_regrowth_area_prior_shift_pi1_mha"), col),
              (f"{design}\nisotonic", val_of("C_forward", design, "predicted_regrowth_area_isotonic_period1_mha"), col)]
ax.bar(range(len(items)), [i[1] for i in items], color=[i[2] for i in items])
for xx, (_, v, _) in enumerate(items):
    ax.text(xx, v, f"{v:.2f}", ha="center", va="bottom", fontsize=8)
ax.set_xticks(range(len(items)), [i[0] for i in items], fontsize=8)
ax.set_ylabel("regrowth area 2012–2024 (Mha)")
ax.set_title("C. Calibrated forward areas vs observed", fontsize=10, loc="left")

ax = fig.add_subplot(gsp[1, 2])
cells = lonlat_to_healpix(g.lon.to_numpy(), g.lat.to_numpy(), HP_DEPTH, ellipsoid="WGS84")
diff = pd.DataFrame({"cell": cells, "num": (p_cal["paired"] - p_cal["global"]) * g.a.to_numpy(),
                     "den": g.a.to_numpy()}).groupby("cell").sum()
diff = (diff.num / diff.den)[diff.den > 0.1 * diff.den.max()]
lim = float(np.nanquantile(np.abs(diff), 0.98))
pc = PolyCollection(cell_polys(diff.index.to_numpy()), array=diff.to_numpy(), cmap="RdBu_r", edgecolor="none")
pc.set_clim(-lim, lim)
ax.add_collection(pc)
ax.autoscale_view()
ax.set_aspect("equal")
ax.set_title("B. Calibrated probability, paired − global\n(HEALPix depth 8, WGS84)", fontsize=10, loc="left")
fig.colorbar(pc, ax=ax, shrink=0.8)
fig.tight_layout()
fig.savefig(FIGURES / "sampling_design.png", dpi=150, bbox_inches="tight")
plt.show()
