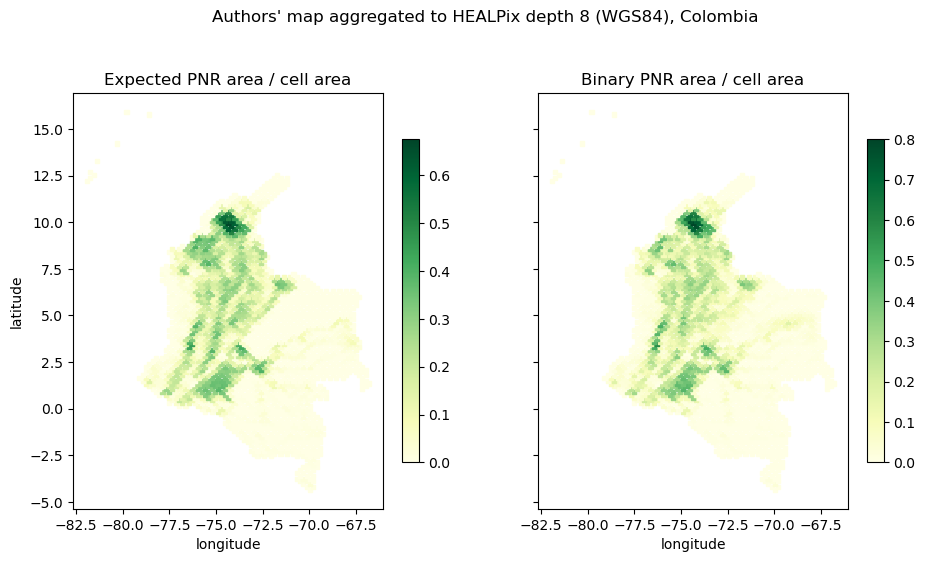

03a — Step 1 reproduction: a country’s natural-regeneration area from the published map

import json
import multiprocessing as mp
import os
from dataclasses import dataclass
from pathlib import Path

import docx
import geopandas as gpd
import matplotlib.pyplot as plt
import numpy as np
import pandas as pd
import rasterio
import shapely
import xarray as xr
from healpix_geo.nested import healpix_to_lonlat, lonlat_to_healpix
from pyproj import Geod, Transformer
from rasterio.features import rasterize
from rasterio.windows import Window

RAW_DIR = Path("../data/raw")
ZEN_DIR = RAW_DIR / "zenodo_7428804"
RESULTS_DIR = Path("../results")
FIGURES_DIR = Path("../figures")
RESULTS_DIR.mkdir(parents=True, exist_ok=True)
FIGURES_DIR.mkdir(parents=True, exist_ok=True)

RES = 0.00025  # native pixel size, degrees
BLOCK_ROWS = 256
HEALPIX_DEPTH = 8  # ~25 km cells
N_WORKERS = int(os.environ.get("N_WORKERS", min(14, os.cpu_count() or 1)))
PCT_NODATA, BIN_NODATA = 255, 3

ISO3 = os.environ.get("ISO3", "COL").upper()
TAG = "colombia" if ISO3 == "COL" else ISO3.lower()  # keeps the original Colombia file names
SUPP_DIR = Path("../paper/supplementary")

WGS84_A = 6378137.0
WGS84_F = 1 / 298.257223563
E2 = WGS84_F * (2 - WGS84_F)
E = np.sqrt(E2)


def _q(phi: np.ndarray) -> np.ndarray:
    s = np.sin(phi)
    return (1 - E2) * (s / (1 - E2 * s * s) - np.log((1 - E * s) / (1 + E * s)) / (2 * E))


def cell_area_ellipsoid(lat_top: np.ndarray, dlon: float = RES, dlat: float = RES) -> np.ndarray:
    """Exact WGS84 area (m²) of lon/lat cells between lat_top - dlat and lat_top."""
    top, bot = np.radians(lat_top), np.radians(lat_top - dlat)
    return WGS84_A**2 / 2 * np.radians(dlon) * (_q(top) - _q(bot))


def cell_area_sphere_a(lat_top: np.ndarray, dlon: float = RES, dlat: float = RES) -> np.ndarray:
    """Area (m²) on a sphere of radius a = what PROJ's WGS84 Mollweide preserves."""
    top, bot = np.radians(lat_top), np.radians(lat_top - dlat)
    return WGS84_A**2 * np.radians(dlon) * (np.sin(top) - np.sin(bot))

geod = Geod(ellps="WGS84")
to_moll = Transformer.from_crs("EPSG:4326", "ESRI:54009", always_xy=True)
checks = []
for lat in [-4.0, 0.0, 4.0, 8.0, 12.0, 15.9]:
    xs = [-74.0, -74.0 + RES, -74.0 + RES, -74.0]
    ys = [lat, lat, lat + RES, lat + RES]
    g_area = abs(geod.polygon_area_perimeter(xs, ys)[0])
    mx, my = to_moll.transform(xs, ys)
    m_area = 0.5 * abs(sum(mx[i] * my[(i + 1) % 4] - mx[(i + 1) % 4] * my[i] for i in range(4)))
    e_area = float(cell_area_ellipsoid(np.array([lat + RES]))[0])
    s_area = float(cell_area_sphere_a(np.array([lat + RES]))[0])
    checks.append(
        dict(lat=lat, ellipsoid=e_area, geod=g_area, sphere_a=s_area, mollweide_planar=m_area,
             sphere_over_ellipsoid=s_area / e_area - 1)
    )
checks = pd.DataFrame(checks)
print(checks.to_string(float_format=lambda v: f"{v:.6g}"))
assert np.allclose(checks.ellipsoid, checks.geod, rtol=1e-8)
assert np.allclose(checks.sphere_a, checks.mollweide_planar, rtol=1e-5)

col = gpd.read_file(RAW_DIR / "gadm" / f"gadm41_{ISO3}.gpkg", layer="ADM_ADM_0")
COUNTRY = col.COUNTRY.iloc[0]
col_geom = shapely.make_valid(col.geometry.iloc[0])
gadm_area_geodesic = abs(geod.geometry_area_perimeter(col_geom)[0])
print(f"GADM 4.1 {COUNTRY} geodesic polygon area: {gadm_area_geodesic / 1e10:.4f} Mha")


def supp_row(docx_name: str, country: str) -> list[str]:
    for table in docx.Document(SUPP_DIR / docx_name).tables:
        for row in table.rows:
            cells = [c.text.strip() for c in row.cells]
            if cells[0] == country:
                return cells
    raise KeyError(country)


t3 = supp_row("41586_2024_8106_MOESM5_ESM.docx", COUNTRY)
t4 = supp_row("41586_2024_8106_MOESM6_ESM.docx", COUNTRY)
PAPER = {"pnr_continuous": float(t3[3]), "pnr_binary": float(t4[3]), "available": float(t3[2])}
PAPER_PROP = {"continuous": float(t3[4]), "binary": float(t4[4])}
print("Supp. Table 3:", t3, "\nSupp. Table 4:", t4)

sources = json.loads((RAW_DIR / "sources.json").read_text())["sources"]
pct_files = [ZEN_DIR / f["key"] for f in sources[0]["files"]]
bin_files = [ZEN_DIR / "pnv_bin_30m" / k for k in sources[1]["extracted_members"]]


@dataclass(frozen=True)
class TilePair:
    pct: str
    bin: str
    left: float
    top: float
    width: int
    height: int


def snap(v: float) -> float:
    return round(v / RES) * RES


bin_by_bounds = {}
for f in bin_files:
    with rasterio.open(f) as r:
        bin_by_bounds[tuple(round(v, 6) for v in r.bounds)] = (str(f), r.width, r.height)

pairs: list[TilePair] = []
for f in pct_files:
    with rasterio.open(f) as r:
        assert abs(r.res[0] - RES) < 1e-12 and abs(r.res[1] - RES) < 1e-12
        key = tuple(round(v, 6) for v in r.bounds)
        bf, bw, bh = bin_by_bounds[key]
        assert (bw, bh) == (r.width, r.height), f"grid mismatch {f.name}"
        pairs.append(TilePair(str(f), bf, snap(r.bounds.left), snap(r.bounds.top), r.width, r.height))
for p in pairs:
    print(Path(p.pct).name, "<->", Path(p.bin).name)

@dataclass(frozen=True)
class Block:
    tile: int
    row0: int
    nrows: int
    col0: int
    ncols: int


def make_blocks(pairs: list[TilePair], geom) -> list[Block]:
    blocks = []
    for t, p in enumerate(pairs):
        tile_geom = shapely.clip_by_rect(geom, p.left, p.top - p.height * RES, p.left + p.width * RES, p.top)
        if tile_geom.is_empty:
            continue
        _, gminy, _, gmaxy = tile_geom.bounds
        r_start = max(0, int((p.top - gmaxy) / RES) - 1)
        r_end = min(p.height, int(np.ceil((p.top - gminy) / RES)) + 1)
        for r0 in range(r_start, r_end, BLOCK_ROWS):
            n = min(BLOCK_ROWS, r_end - r0)
            band = shapely.clip_by_rect(tile_geom, p.left, p.top - (r0 + n) * RES, p.left + p.width * RES, p.top - r0 * RES)
            if band.is_empty:
                continue
            bminx, _, bmaxx, _ = band.bounds
            c0 = max(0, int((bminx - p.left) / RES) - 1)
            c1 = min(p.width, int(np.ceil((bmaxx - p.left) / RES)) + 1)
            blocks.append(Block(t, r0, n, c0, c1 - c0))
    return blocks


blocks = make_blocks(pairs, col_geom)
print(f"{len(blocks)} blocks, {sum(b.nrows * b.ncols for b in blocks) / 1e9:.2f} G pixels read")

HP_VARS = ["area_country", "area_pct_valid", "expected_pnr", "area_pct_gt50", "area_bin_valid", "area_bin_pnr"]
_GEOM = None


def _init(geom_wkb: bytes) -> None:
    global _GEOM
    _GEOM = shapely.from_wkb(geom_wkb)


def process_block(job: tuple[TilePair, Block]) -> dict:
    p, b = job
    win = Window(b.col0, b.row0, b.ncols, b.nrows)
    x0, y0 = p.left + b.col0 * RES, p.top - b.row0 * RES
    band = shapely.clip_by_rect(_GEOM, x0 - RES, y0 - (b.nrows + 1) * RES, x0 + (b.ncols + 1) * RES, y0 + RES)
    transform = rasterio.transform.from_origin(x0, y0, RES, RES)
    mask = rasterize([(band, 1)], out_shape=(b.nrows, b.ncols), transform=transform, fill=0, dtype="uint8").astype(bool)
    lat_top = y0 - np.arange(b.nrows) * RES
    out = {"lat_top": lat_top, "counts": np.zeros((b.nrows, 1024), np.int64), "hp_cells": np.empty(0, np.uint64),
           "hp_sums": np.zeros((len(HP_VARS), 0))}
    if not mask.any():
        return out
    with rasterio.open(p.pct) as rp, rasterio.open(p.bin) as rb:
        pct = rp.read(1, window=win)
        bn = rb.read(1, window=win)
    rr, cc = np.nonzero(mask)
    pv, bv = pct[rr, cc].astype(np.int64), bn[rr, cc].astype(np.int64)
    idx = rr.astype(np.int64) * 1024 + pv * 4 + bv
    out["counts"] = np.bincount(idx, minlength=b.nrows * 1024).reshape(b.nrows, 1024)

    lon = x0 + (cc + 0.5) * RES
    lat = y0 - (rr + 0.5) * RES
    cells = lonlat_to_healpix(lon, lat, HEALPIX_DEPTH, ellipsoid="WGS84", num_threads=1)
    uniq, inv = np.unique(cells, return_inverse=True)
    area = cell_area_ellipsoid(lat_top)[rr]
    pvalid = pv != PCT_NODATA
    weights = [
        area,
        area * pvalid,
        area * np.where(pvalid, pv, 0) / 100.0,
        area * (pvalid & (pv > 50)),
        area * (bv <= 1),
        area * (bv == 1),
    ]
    out["hp_cells"] = uniq
    out["hp_sums"] = np.stack([np.bincount(inv, weights=w, minlength=uniq.size) for w in weights])
    return out

jobs = [(pairs[b.tile], b) for b in blocks]
area_models = {"ellipsoid_wgs84": cell_area_ellipsoid, "sphere_a_mollweide": cell_area_sphere_a,
               "nominal_900m2": lambda lat: np.full_like(lat, 900.0)}
hist = {m: np.zeros(1024) for m in area_models}
hp_acc: dict[int, np.ndarray] = {}


def accumulate(res: dict) -> None:
    for m, fn in area_models.items():
        hist[m] += res["counts"].T @ fn(res["lat_top"])
    for c, s in zip(res["hp_cells"].tolist(), res["hp_sums"].T):
        if c in hp_acc:
            hp_acc[c] += s
        else:
            hp_acc[c] = s.copy()


if "fork" in mp.get_all_start_methods() and N_WORKERS > 1:
    with mp.get_context("fork").Pool(N_WORKERS, initializer=_init, initargs=(shapely.to_wkb(col_geom),)) as pool:
        for i, res in enumerate(pool.imap_unordered(process_block, jobs, chunksize=1)):
            accumulate(res)
            if i % 100 == 0:
                print(f"{i}/{len(jobs)} blocks", flush=True)
else:
    _init(shapely.to_wkb(col_geom))
    for res in map(process_block, jobs):
        accumulate(res)
print("done")

H = {m: h.reshape(256, 4) for m, h in hist.items()}
pct_vals = np.arange(256)
pct_ok = pct_vals <= 100
MHA = 1e10  # m² per Mha


def stats(h: np.ndarray) -> dict[str, float]:
    by_pct = h.sum(axis=1)
    by_bin = h.sum(axis=0)
    p = np.where(pct_ok, pct_vals, 0)
    return {
        "country_pixels": h.sum() / MHA,
        "pct_valid": by_pct[pct_ok].sum() / MHA,
        "pct_gt0": by_pct[(pct_vals > 0) & pct_ok].sum() / MHA,
        "expected": (by_pct * p / 100)[pct_ok].sum() / MHA,
        "expected_lower_round": (by_pct * np.clip(p - 0.5, 0, 100) / 100)[pct_ok].sum() / MHA,
        "expected_upper_round": (by_pct * np.clip(p + 0.5, 0, 100) / 100)[pct_ok].sum() / MHA,
        "expected_upper_trunc": (by_pct * np.clip(p + 1.0, 0, 100) / 100)[pct_ok].sum() / MHA,
        "pct_nodata_bin0": h[PCT_NODATA, 0] / MHA,
        "expected_upper_round_incl_subpct": (by_pct * np.clip(p + 0.5, 0, 100) / 100)[pct_ok].sum() / MHA
        + 0.005 * h[PCT_NODATA, 0] / MHA,
        "expected_upper_trunc_incl_subpct": (by_pct * np.clip(p + 1.0, 0, 100) / 100)[pct_ok].sum() / MHA
        + 0.01 * h[PCT_NODATA, 0] / MHA,
        "pct_gt50": by_pct[(pct_vals > 50) & pct_ok].sum() / MHA,
        "pct_ge50": by_pct[(pct_vals >= 50) & pct_ok].sum() / MHA,
        "bin_valid": (by_bin[0] + by_bin[1]) / MHA,
        "bin_pnr": by_bin[1] / MHA,
        "bin_pnr_where_pct_valid": h[pct_ok, 1].sum() / MHA,
        "bin_pnr_where_pct_nodata": h[PCT_NODATA, 1] / MHA,
        "bin_valid_where_pct_valid": h[pct_ok, :2].sum() / MHA,
        "pct_valid_where_bin_nodata": h[pct_ok, BIN_NODATA].sum() / MHA,
        "pct_gt50_and_bin1": h[(pct_vals > 50) & pct_ok, 1].sum() / MHA,
        "pct_le50_and_bin1": h[(pct_vals <= 50), 1].sum() / MHA,
        "pct_gt50_and_bin0": h[(pct_vals > 50) & pct_ok, 0].sum() / MHA,
    }


S = {m: stats(h) for m, h in H.items()}
stats_table = pd.DataFrame(S)
print(stats_table.to_string(float_format=lambda v: f"{v:.4f}"))
print(f"\nGADM geodesic polygon area: {gadm_area_geodesic / MHA:.4f} Mha "
      f"(country pixel sum, ellipsoid: {S['ellipsoid_wgs84']['country_pixels']:.4f} Mha)")

COMPARE = [
    ("pnr_continuous_expected", "expected", "pnr_continuous", "Supp. Table 3"),
    ("pnr_continuous_expected_lower_if_rounded", "expected_lower_round", "pnr_continuous", "Supp. Table 3"),
    ("pnr_continuous_expected_upper_if_rounded", "expected_upper_round", "pnr_continuous", "Supp. Table 3"),
    ("pnr_continuous_expected_upper_if_truncated", "expected_upper_trunc", "pnr_continuous", "Supp. Table 3"),
    ("pnr_continuous_expected_upper_if_rounded_incl_subpercent", "expected_upper_round_incl_subpct", "pnr_continuous", "Supp. Table 3"),
    ("pnr_continuous_expected_upper_if_truncated_incl_subpercent", "expected_upper_trunc_incl_subpct", "pnr_continuous", "Supp. Table 3"),
    ("pnr_binary_product", "bin_pnr", "pnr_binary", "Supp. Table 4"),
    ("pnr_binary_product_where_pct_valid", "bin_pnr_where_pct_valid", "pnr_binary", "Supp. Table 4"),
    ("pnr_continuous_thresholded_gt50", "pct_gt50", "pnr_binary", "Supp. Table 4"),
    ("pnr_continuous_thresholded_ge50", "pct_ge50", "pnr_binary", "Supp. Table 4"),
    ("available_candidate_pct_valid", "pct_valid", "available", "Supp. Tables 3-4"),
    ("available_candidate_bin_valid", "bin_valid", "available", "Supp. Tables 3-4"),
    ("available_candidate_pct_gt0", "pct_gt0", "available", "Supp. Tables 3-4"),
    ("country_area_pixel_centres_in_gadm", "country_pixels", None, None),
    ("diag_bin1_where_pct_nodata", "bin_pnr_where_pct_nodata", None, None),
    ("diag_bin1_where_pct_le50", "pct_le50_and_bin1", None, None),
    ("diag_bin0_where_pct_gt50", "pct_gt50_and_bin0", None, None),
    ("diag_pct_valid_where_bin_nodata", "pct_valid_where_bin_nodata", None, None),
    ("diag_pct_nodata_where_bin0", "pct_nodata_bin0", None, None),
]
rows = []
for metric, key, paper_key, paper_src in COMPARE:
    for m in area_models:
        v = S[m][key]
        pv = PAPER.get(paper_key) if paper_key else None
        rows.append(dict(
            metric=metric, area_model=m, value_mha=round(v, 4),
            paper_value_mha=pv, paper_source=paper_src,
            diff_mha=round(v - pv, 4) if pv else None,
            diff_pct=round(100 * (v / pv - 1), 2) if pv else None,
        ))
rows.append(dict(metric="country_area_gadm_geodesic_polygon", area_model="ellipsoid_wgs84",
                 value_mha=round(gadm_area_geodesic / MHA, 4), paper_value_mha=None, paper_source=None,
                 diff_mha=None, diff_pct=None))
for metric, num, den, pv in [
    ("proportion_continuous_of_available_pct_valid", "expected", "pct_valid", PAPER_PROP["continuous"]),
    ("proportion_binary_of_available_bin_valid", "bin_pnr", "bin_valid", PAPER_PROP["binary"]),
]:
    v = S["ellipsoid_wgs84"][num] / S["ellipsoid_wgs84"][den]
    rows.append(dict(metric=metric, area_model="ellipsoid_wgs84", value_mha=round(v, 4), paper_value_mha=pv,
                     paper_source="Supp. Table 3" if "continuous" in metric else "Supp. Table 4",
                     diff_mha=round(v - pv, 4), diff_pct=round(100 * (v / pv - 1), 2)))
for key in ["expected", "bin_pnr", "pct_valid", "country_pixels"]:
    rows.append(dict(metric=f"sphere_a_over_ellipsoid_minus1_{key}", area_model="ratio",
                     value_mha=round(S["sphere_a_mollweide"][key] / S["ellipsoid_wgs84"][key] - 1, 6),
                     paper_value_mha=None, paper_source=None, diff_mha=None, diff_pct=None))
result = pd.DataFrame(rows)
result.insert(0, "iso3", ISO3)
result.to_csv(RESULTS_DIR / f"step1_reproduction_{TAG}.csv", index=False)
with pd.option_context("display.width", 200, "display.max_rows", 200):
    print(result.to_string(index=False))

key_rows = result[result.metric.isin(["pnr_continuous_expected", "pnr_binary_product", "available_candidate_bin_valid"])]
print(key_rows.pivot(index="metric", columns="area_model", values="value_mha").assign(
    paper=lambda d: d.index.map({"pnr_continuous_expected": PAPER["pnr_continuous"],
                                 "pnr_binary_product": PAPER["pnr_binary"],
                                 "available_candidate_bin_valid": PAPER["available"]})).to_string())

he = H["ellipsoid_wgs84"]
histo = pd.DataFrame({
    "pct_value": pct_vals, "area_mha_total": he.sum(axis=1) / MHA, "area_mha_bin0": he[:, 0] / MHA,
    "area_mha_bin1": he[:, 1] / MHA, "area_mha_bin_nodata": he[:, BIN_NODATA] / MHA,
})
histo = histo[histo.area_mha_total > 0]
histo.to_csv(RESULTS_DIR / f"step1_pct_histogram_{TAG}.csv", index=False)
print(histo.head(5).to_string(index=False), "\n...\n", histo.tail(3).to_string(index=False))

cell_ids = np.array(sorted(hp_acc), dtype=np.uint64)
sums = np.stack([hp_acc[int(c)] for c in cell_ids])
hp_cell_area = 2 * np.pi * WGS84_A**2 * _q(np.pi / 2) / (12 * 4**HEALPIX_DEPTH)
clon, clat = healpix_to_lonlat(cell_ids, HEALPIX_DEPTH, ellipsoid="WGS84")
clon = (np.asarray(clon) + 180.0) % 360.0 - 180.0
ds = xr.Dataset(
    {v: ("cells", sums[:, i], {"units": "m2"}) for i, v in enumerate(HP_VARS)},
    coords={
        "cell_ids": ("cells", cell_ids, {"grid_name": "healpix", "level": HEALPIX_DEPTH,
                                         "indexing_scheme": "nested", "ellipsoid": "WGS84"}),
        "longitude": ("cells", np.asarray(clon), {"units": "degrees_east"}),
        "latitude": ("cells", np.asarray(clat), {"units": "degrees_north", "note": "geodetic, WGS84"}),
    },
    attrs={
        "title": f"Williams et al. (2024) natural-regeneration potential, {COUNTRY}, aggregated to HEALPix depth 8",
        "source": f"Zenodo 10.5281/zenodo.7428804 (pnv_pct_30m, pnv_bin_30m), GADM 4.1 {ISO3} level 0",
        "method": "30 m pixel centres in GADM polygon assigned to HEALPix NESTED cells with "
                  "healpix_geo.nested.lonlat_to_healpix(ellipsoid='WGS84'); exact WGS84 pixel areas summed; no resampling",
        "healpix_cell_area_m2": hp_cell_area,
        "variables": "area_country: all in-country pixels; area_pct_valid: continuous product not NoData; "
                     "expected_pnr: sum(area*pct/100); area_pct_gt50: continuous > 50 %; "
                     "area_bin_valid: binary product 0 or 1; area_bin_pnr: binary product = 1",
    },
)
hp_path = RESULTS_DIR / (f"step1_authors_map_healpix_d{HEALPIX_DEPTH}.nc" if ISO3 == "COL"
                         else f"step1_authors_map_healpix_d{HEALPIX_DEPTH}_{TAG}.nc")
ds.to_netcdf(hp_path)
print(ds)
print("check: HEALPix total expected =", float(ds.expected_pnr.sum()) / MHA, "Mha")

fig, axes = plt.subplots(1, 2, figsize=(11, 6), sharey=True)
frac = ds.expected_pnr / hp_cell_area
for ax, (v, title) in zip(axes, [(frac, "Expected PNR area / cell area"),
                                 (ds.area_bin_pnr / hp_cell_area, "Binary PNR area / cell area")]):
    sc = ax.scatter(ds.longitude, ds.latitude, c=v, s=9, marker="s", cmap="YlGn", vmin=0)
    ax.set_title(title)
    ax.set_xlabel("longitude")
    ax.set_aspect("equal")
    fig.colorbar(sc, ax=ax, shrink=0.7)
axes[0].set_ylabel("latitude")
fig.suptitle(f"Authors' map aggregated to HEALPix depth {HEALPIX_DEPTH} (WGS84), {COUNTRY}")
fig.savefig(FIGURES_DIR / ("step1_authors_map_healpix.png" if ISO3 == "COL" else f"step1_authors_map_healpix_{TAG}.png"), dpi=150, bbox_inches="tight")
plt.show()
