Inspect the internal structure of EarthCARE L2 products to understand dimensions, variables, and coordinate systems before conversion.
import earthcarekit as eck
import numpy as np
import xarray as xr
ORBIT = "06109D"MSI products (2D swath)¶
MSI has (along_track, across_track) dimensions with 2D lat/lon arrays — similar to Sentinel-3 OLCI/SLSTR.
for file_type in ["MSI_CM__2A", "MSI_COP_2A", "MSI_AOT_2A"]:
try:
result = eck.search_product(file_type=file_type, orbit_and_frame=ORBIT)
with eck.read_product(result.filepath[0]) as ds:
print(f"\n{'='*60}")
print(f"{file_type}")
print(f"{'='*60}")
print(f"Dimensions: {dict(ds.sizes)}")
print(f"\n2D variables (along_track, across_track):")
for v in ds.data_vars:
if ds[v].dims == ("along_track", "across_track"):
vals = ds[v].values
fill = -128 if vals.dtype == np.int8 else None
if fill is not None:
valid = vals[vals != fill]
elif vals.dtype in (np.float32, np.float64):
valid = vals[np.isfinite(vals)]
else:
valid = vals.ravel()
n_valid = len(valid)
if n_valid > 0:
print(f" {v}: dtype={vals.dtype}, valid={n_valid}, range=[{valid.min():.3f}, {valid.max():.3f}]")
else:
print(f" {v}: dtype={vals.dtype}, ALL FILL")
except Exception as e:
print(f"\n{file_type}: not available ({e})")
============================================================
MSI_CM__2A
============================================================
Dimensions: {'along_track': 11216, 'across_track': 357}
2D variables (along_track, across_track):
latitude_swath: dtype=float64, valid=4004112, range=[22.291, 67.620]
longitude_swath: dtype=float64, valid=4004112, range=[-0.939, 19.344]
quality_status: dtype=int8, valid=4004112, range=[0.000, 3.000]
cloud_mask: dtype=int8, valid=3987502, range=[0.000, 3.000]
cloud_type: dtype=int8, valid=3981555, range=[0.000, 9.000]
cloud_phase: dtype=int8, valid=954386, range=[1.000, 3.000]
surface_classification: dtype=int16, valid=4004112, range=[-32765.000, -32509.000]
cloud_mask_quality_status: dtype=int8, valid=4004112, range=[8.000, 16.000]
cloud_type_quality_status: dtype=int8, valid=3981555, range=[2.000, 16.000]
cloud_phase_quality_status: dtype=int8, valid=4004112, range=[-127.000, 16.000]
plot_surface_classification: dtype=float64, valid=4004112, range=[1.000, 8.000]
plot_cloud_mask_quality_status: dtype=float64, valid=4004112, range=[3.000, 4.000]
plot_cloud_type_quality_status: dtype=float64, valid=4004112, range=[0.000, 4.000]
plot_cloud_phase_quality_status: dtype=float64, valid=4004112, range=[0.000, 4.000]
============================================================
MSI_COP_2A
============================================================
Dimensions: {'along_track': 11216, 'across_track': 357}
2D variables (along_track, across_track):
latitude_swath: dtype=float64, valid=4004112, range=[22.291, 67.620]
longitude_swath: dtype=float64, valid=4004112, range=[-0.939, 19.344]
quality_status: dtype=int8, valid=4004112, range=[0.000, 3.000]
cloud_optical_thickness: dtype=float32, valid=748392, range=[0.252, 255.000]
cloud_effective_radius: dtype=float32, valid=748392, range=[0.000, 0.000]
cloud_water_path: dtype=float32, valid=748392, range=[0.000, 12.008]
cloud_optical_thickness_error: dtype=float32, valid=748392, range=[0.005, 255.000]
cloud_effective_radius_error: dtype=float32, valid=748392, range=[0.000, 0.000]
cloud_water_path_error: dtype=float32, valid=748392, range=[0.000, 12.280]
cloud_top_pressure: dtype=float32, valid=741865, range=[-48611.242, 124734.094]
cloud_top_temperature: dtype=float32, valid=741865, range=[172.607, 325.155]
cloud_top_height: dtype=float32, valid=741865, range=[0.171, 16827.830]
cloud_top_pressure_error: dtype=float32, ALL FILL
cloud_top_temperature_error: dtype=float32, valid=741865, range=[0.046, 61.070]
cloud_top_height_error: dtype=float32, ALL FILL
isccp_cloud_type: dtype=int64, valid=4004112, range=[-127.000, 9.000]
============================================================
MSI_AOT_2A
============================================================
Dimensions: {'along_track': 11216, 'across_track': 357, 'aerosol_components': 4}
2D variables (along_track, across_track):
latitude_swath: dtype=float64, valid=4004112, range=[22.291, 67.620]
longitude_swath: dtype=float64, valid=4004112, range=[-0.939, 19.344]
viewing_zenith_angle: dtype=float32, valid=4004112, range=[0.686, 17.969]
aerosol_optical_thickness_670nm: dtype=float32, valid=684230, range=[0.001, 0.462]
aerosol_optical_thickness_865nm: dtype=float32, valid=341654, range=[0.000, 0.353]
aerosol_optical_thickness_670nm_error: dtype=float32, valid=684230, range=[0.000, 0.279]
aerosol_optical_thickness_865nm_error: dtype=float32, valid=341654, range=[0.000, 0.006]
angstrom_parameter_670nm_865nm: dtype=float32, valid=341603, range=[0.499, 2.399]
angstrom_parameter_355nm_670nm: dtype=float32, valid=341603, range=[0.676, 1.771]
quality_mask: dtype=int16, valid=4004112, range=[2.000, 612.000]
quality_status: dtype=int8, valid=4004112, range=[0.000, 4.000]
surface_reflectance_670nm: dtype=float32, valid=342576, range=[0.009, 0.125]
surface_reflectance_670nm_error: dtype=float32, valid=342576, range=[0.018, 0.031]
plot_quality_mask: dtype=float64, valid=4004112, range=[1.000, 9.000]
ATLID/CPR products (1D profiles)¶
Profile instruments have (along_track,) lat/lon with a vertical dimension for atmospheric columns.
for file_type in ["ATL_AER_2A"]:
try:
result = eck.search_product(file_type=file_type, orbit_and_frame=ORBIT)
with eck.read_product(result.filepath[0]) as ds:
print(f"\n{'='*60}")
print(f"{file_type}")
print(f"{'='*60}")
print(f"Dimensions: {dict(ds.sizes)}")
print(f"Lat: shape={ds['latitude'].shape}, range=[{float(ds['latitude'].min()):.1f}, {float(ds['latitude'].max()):.1f}]")
print(f"Lon: shape={ds['longitude'].shape}, range=[{float(ds['longitude'].min()):.1f}, {float(ds['longitude'].max()):.1f}]")
print(f"\n2D variables (along_track, vertical):")
for v in ds.data_vars:
if ds[v].dims == ("along_track", "vertical"):
print(f" {v}: shape={ds[v].shape}, dtype={ds[v].dtype}")
except Exception as e:
print(f"\n{file_type}: not available ({e})")
============================================================
ATL_AER_2A
============================================================
Dimensions: {'along_track': 5144, 'vertical': 242, 'layer': 25, 'class': 7}
Lat: shape=(5144,), range=[22.5, 67.5]
Lon: shape=(5144,), range=[-0.6, 16.7]
2D variables (along_track, vertical):
height: shape=(5144, 242), dtype=float32
range: shape=(5144, 242), dtype=float32
simple_classification: shape=(5144, 242), dtype=int8
mie_detection_status: shape=(5144, 242), dtype=int8
rayleigh_detection_status: shape=(5144, 242), dtype=int8
horizontal_averaging_mask: shape=(5144, 242), dtype=int32
internal_lidar_feature_mask: shape=(5144, 242), dtype=int8
extended_data_quality_status: shape=(5144, 242), dtype=int8
quality_status: shape=(5144, 242), dtype=int8
particle_extinction_coefficient_355nm: shape=(5144, 242), dtype=float32
particle_extinction_coefficient_355nm_error: shape=(5144, 242), dtype=float32
particle_backscatter_coefficient_355nm: shape=(5144, 242), dtype=float32
particle_backscatter_coefficient_355nm_error: shape=(5144, 242), dtype=float32
particle_linear_depol_ratio_355nm: shape=(5144, 242), dtype=float32
particle_linear_depol_ratio_355nm_error: shape=(5144, 242), dtype=float32
lidar_ratio_355nm: shape=(5144, 242), dtype=float32
lidar_ratio_355nm_error: shape=(5144, 242), dtype=float32
particle_effective_area_radius: shape=(5144, 242), dtype=float32
multiple_scattering_eta_o_parameter: shape=(5144, 242), dtype=float32
multiple_scattering_mie_f_fac_parameter: shape=(5144, 242), dtype=float32
classification: shape=(5144, 242), dtype=int8
aerosol_classification: shape=(5144, 242), dtype=int8
aerosol_classification_no_error: shape=(5144, 242), dtype=int8

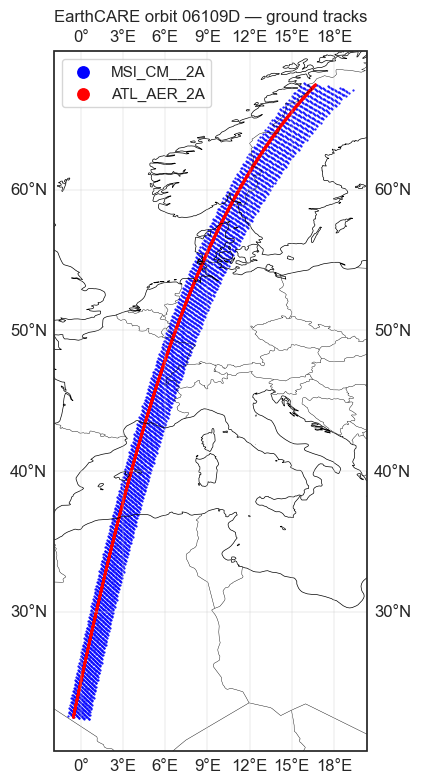

Visualize ground tracks¶
import matplotlib.pyplot as plt
import cartopy.crs as ccrs
import cartopy.feature as cfeature
fig, ax = plt.subplots(figsize=(12, 8), subplot_kw={"projection": ccrs.PlateCarree()})
ax.add_feature(cfeature.COASTLINE, linewidth=0.5)
ax.add_feature(cfeature.BORDERS, linewidth=0.3)
ax.gridlines(draw_labels=True, linewidth=0.3)
colors = {"MSI_CM__2A": "blue", "ATL_AER_2A": "red"}
for file_type, color in colors.items():
try:
result = eck.search_product(file_type=file_type, orbit_and_frame=ORBIT)
with eck.read_product(result.filepath[0]) as ds:
if "latitude_swath" in ds:
lat = ds["latitude_swath"].values
lon = ds["longitude_swath"].values
else:
lat = ds["latitude"].values
lon = ds["longitude"].values
step = max(1, lat.size // 5000)
ax.scatter(lon.ravel()[::step], lat.ravel()[::step],
s=0.3, color=color, label=file_type, transform=ccrs.PlateCarree())
except Exception:
pass
ax.legend(markerscale=15)
ax.set_title(f"EarthCARE orbit {ORBIT} — ground tracks")
plt.tight_layout()
plt.show()
