08 — Figure 3 replica

import os
from pathlib import Path

import cartopy.crs as ccrs
import cartopy.feature as cfeature
import matplotlib.pyplot as plt
import numpy as np
import xarray as xr
from matplotlib.colors import BoundaryNorm
from scipy import stats

TARGET_RES_DEG = float(os.environ.get("MHW_TARGET_RES_DEG", 1.0))
RESULTS_DIR = Path("../results")
FIG_DIR = Path("../figures")
FIG_DIR.mkdir(parents=True, exist_ok=True)

mhw = xr.open_dataset(RESULTS_DIR / f"mhw_annual_{TARGET_RES_DEG:g}deg.nc")
sst = xr.open_dataset(RESULTS_DIR / f"sst_annual_stats_{TARGET_RES_DEG:g}deg.nc")
years = mhw["year"].values.astype(float)
print(f"MHW  {dict(mhw.sizes)}")
print(f"SST  {dict(sst.sizes)}")

def trend_per_decade(da: xr.DataArray, yrs: np.ndarray):
    """Theil-Sen slope per decade, and whether its 95% CI excludes zero."""
    vals = da.transpose("year", "latitude", "longitude").values
    ny, nlat, nlon = vals.shape
    flat = vals.reshape(ny, -1)
    slope = np.full(flat.shape[1], np.nan)
    signif = np.zeros(flat.shape[1], dtype=bool)
    for i in range(flat.shape[1]):
        y = flat[:, i]
        ok = np.isfinite(y)
        # Theil-Sen on a handful of points is meaningless; require most of the
        # record. Cells failing this stay NaN rather than contributing noise.
        if ok.sum() < 20:
            continue
        s, _, lo, hi = stats.theilslopes(y[ok], yrs[ok], alpha=0.95)
        slope[i] = s * 10.0
        signif[i] = (lo > 0) or (hi < 0)
    return slope.reshape(nlat, nlon), signif.reshape(nlat, nlon)


# Panel definitions: (label, title, data, colourbar levels, unit)
PANELS = [
    ("a", "MHW frequency linear trend", mhw["mhw_events"],
     [-3.5, -2.0, -1.0, -0.5, 0.5, 1.0, 2.0, 3.5], "Count per decade", False),
    ("b", "MHW intensity linear trend", mhw["mhw_intensity"],
     [-0.75, -0.50, -0.25, -0.10, 0.10, 0.25, 0.50, 0.75], "°C per decade", False),
    ("c", "MHW duration linear trend", mhw["mhw_duration"],
     [-50, -10, -5, -2.5, 2.5, 5, 10, 50], "Days per decade", False),
    ("d", "Mean SST linear trend", sst["sst_mean"],
     [-0.9, -0.6, -0.3, -0.1, 0.1, 0.3, 0.6, 0.9], "°C per decade", True),
    ("e", "SST variance linear trend", sst["sst_variance"],
     [-1.50, -0.50, -0.15, -0.05, 0.05, 0.15, 0.50, 1.50], "°C² per decade", True),
    ("f", "SST skewness linear trend", sst["sst_skewness"],
     [-1.00, -0.74, -0.50, -0.10, 0.10, 0.50, 0.74, 1.00], "Per decade", True),
]

computed = []
for key, title, da, levels, unit, hatch in PANELS:
    sl, sig = trend_per_decade(da, years)
    # Each panel carries its own grid: the MHW file holds only the 145 ocean
    # latitude rows that survived detection, the SST-statistics file all 180.
    computed.append((key, title, sl, sig, levels, unit, hatch,
                     da["longitude"].values, da["latitude"].values))
    print(f"  {key}: median {np.nanmedian(sl):+8.4f}, "
          f"{100 * np.nanmean(sig[np.isfinite(sl)]):5.1f}% significant", flush=True)

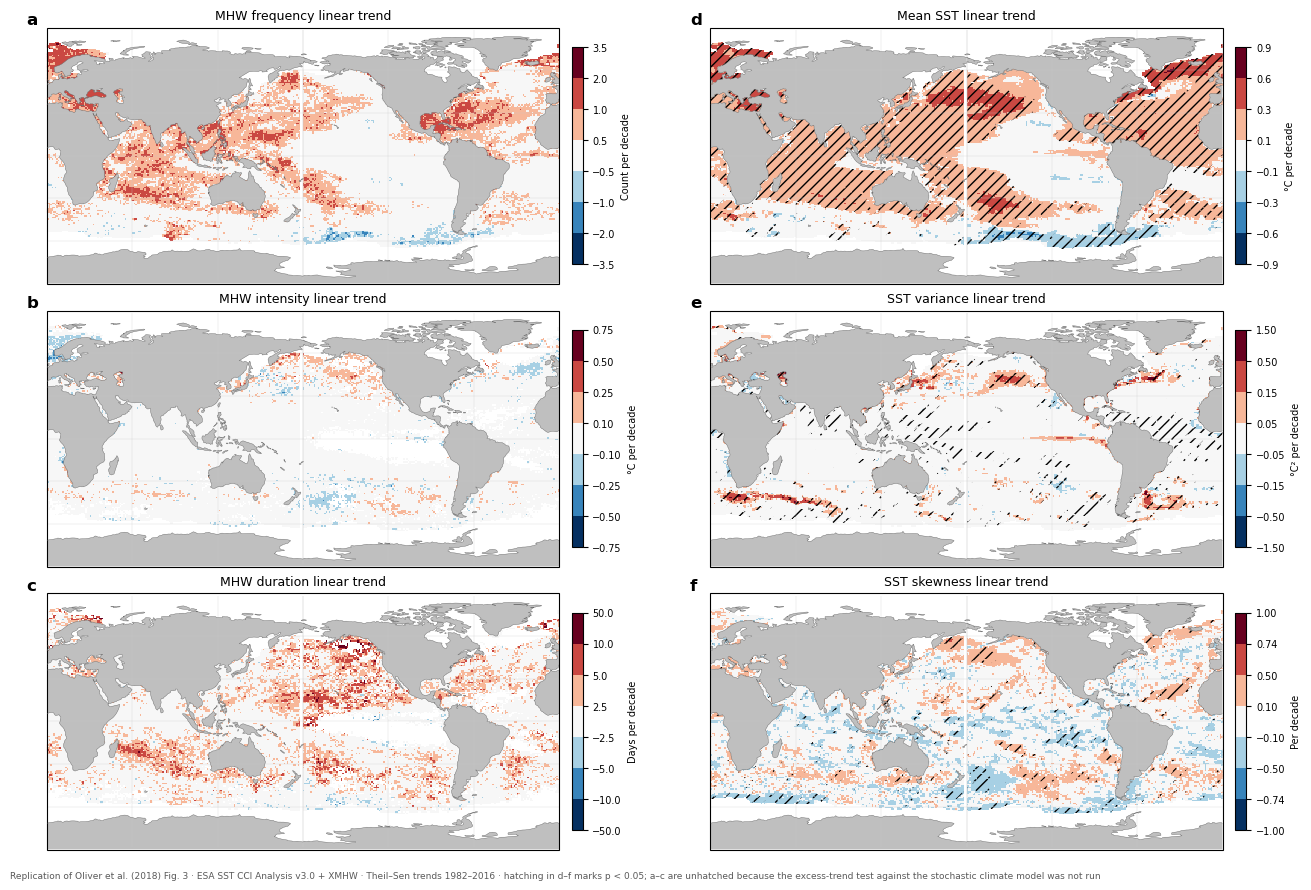

proj = ccrs.PlateCarree(central_longitude=180)

fig = plt.figure(figsize=(13.5, 9))
# Paper layout: a,b,c down the left column; d,e,f down the right.
order = [0, 3, 1, 4, 2, 5]

for slot, idx in enumerate(order):
    key, title, sl, sig, levels, unit, hatch, lon, lat = computed[idx]
    ax = fig.add_subplot(3, 2, slot + 1, projection=proj)

    cmap = plt.get_cmap("RdBu_r", len(levels) - 1)
    norm = BoundaryNorm(levels, cmap.N)
    mesh = ax.pcolormesh(lon, lat, sl, cmap=cmap, norm=norm,
                         transform=ccrs.PlateCarree(), shading="auto")

    if hatch:
        # Hatch where the trend is significantly different from zero.
        ax.contourf(lon, lat, sig.astype(float), levels=[0.5, 1.5],
                    colors="none", hatches=["///"],
                    transform=ccrs.PlateCarree())

    ax.add_feature(cfeature.LAND, facecolor="0.75", zorder=2)
    ax.coastlines(linewidth=0.3, color="0.4", zorder=3)
    ax.set_global()
    gl = ax.gridlines(draw_labels=False, linewidth=0.2, color="0.8")
    ax.set_title(title, fontsize=9)
    ax.text(-0.04, 1.06, key, transform=ax.transAxes,
            fontsize=12, fontweight="bold", va="top")

    cb = fig.colorbar(mesh, ax=ax, orientation="vertical", pad=0.02,
                      shrink=0.85, ticks=levels)
    cb.ax.tick_params(labelsize=7)
    cb.set_label(unit, fontsize=7)

fig.suptitle("", y=0.995)
fig.text(0.01, 0.005,
         "Replication of Oliver et al. (2018) Fig. 3 · ESA SST CCI Analysis v3.0 "
         "+ XMHW · Theil–Sen trends 1982–2016 · hatching in d–f marks p < 0.05; "
         "a–c are unhatched because the excess-trend test against the stochastic "
         "climate model was not run",
         fontsize=6.5, color="0.35")

fig.tight_layout(rect=[0, 0.02, 1, 1])
fig.savefig(FIG_DIR / "figure3_replica.png", dpi=170, bbox_inches="tight")
fig.savefig(FIG_DIR / "figure3_replica.pdf", bbox_inches="tight")
plt.show()
